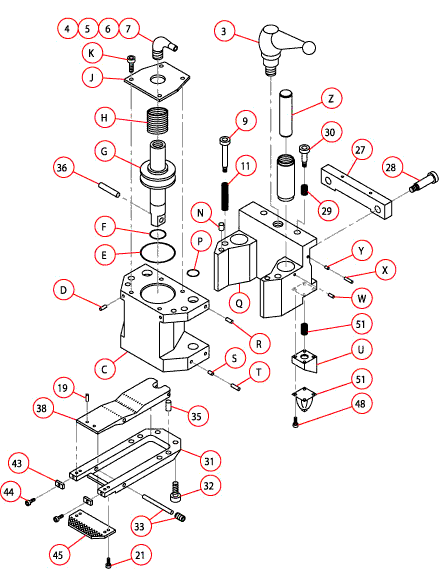

| Vipros Air Component Parts – MH2MCO |
|||
 |
|||
| DWG No. | Part No. | Description | Price |
| 00 | MH2MCO | Complete Assembly/Carbide | |
| 00 | MH2MCO-S | Complete Assembly/Screw | |
| 00 | MH2MJA | Clamp Assembly/Carbide (Incl. #31, 38, 43, 45) | |
| 00 | MH2MJA-S | Clamp Assembly/Screw (Incl. #31, 38, 43, 45) | |
| 00 | MH2MJA-3/8 | Clamp Assembly 1/8-3/8 (Incl. #31,38,43,45) | |
| 00 | MH1MCP-18 | Clamp Lever (Steel 10mm) | |
| 04 | MH6MCP-38 | Hose Assembly | |
| 04 | MH6MCP-38A | Elbow | |
| 05 | MH6MCP-38B | Flexible Tubing | |
| 06 | MH6MCP-38C | Male Nipple | |
| 07 | MH6MCP-38D | Coupler Assembly | |
| 07 | MH6MCP-38E | Metric Coupler/Air | N/A |
| 09 | MH6MCP-23 | Bolt AH 6×100 | |
| 11 | MH6MCP-54 | Clamp Base Spring | |
| 19 | MHSSS05x05 | Screw, SS Pkg of 10 | |
| 21 | MH7ARP-21 | Screw, FH Pkg of 10 | |
| 27 | MH3MCP-08 | Dove-Tail Clamp | |
| 28 | MH2MCP-28 | Bolt | |
| 29 | MH3MCP-04 | Dove-Tail Spring | |
| 30 | MH2MCP-30 | Bolt | |
| 31 | MH2MPA | Clamp Base (Incl #33) | |
| 31 | MH2MPA-3/8 | Clamp Base 1/8-3/8 (Incl. #33) | |
| 32 | MHSCS08x20 | Screw, AH Pkg of 10 | |
| 33 | MH2MCP-27 | Straight Pin & Set Screw | |
| 35 | MH2MCP-31 | Straight Pin | |
| 36 | MH6MCP-36 | Straight Pin | |
| 38 | MH2MUJ | Clamper/Carbide | |
| 38 | MH2MUJ-S | Clamper/Set Screw (Incl. #19) | |
| 43 | MH2MCP-32 | Stopper Plate (Incl. #44) | |
| 44 | MHSFS04x10 | Screw, FH Pkg of 10 | |
| 45 | MH3MLJ | Clamp Plate (Incl. #21) | |
| 45 | MH3MLJ-C | Clamp Plate/Carbide (Incl. #21) | |
| 51 | MH4MCP-16 | Roller Cam/Head | |
| 99 | MH2MUB | Urethane Boot | |
| 99 | MH4M-S10 | .010 Shims Pkg of 10 | |
| 99 | MH4M-S3 | .003 Shims Pkg of 10 | |
| 99 | MH4M-S5 | .005 Shims Pkg of 10 | |
| 99 | MH5A-ILJ | Carbide Insert/Lower Jaw (Knurl) | N/A |
| 99 | MH5IUL | Carbide Inset/Upper Jaw (Chisel Edge) | N/A |

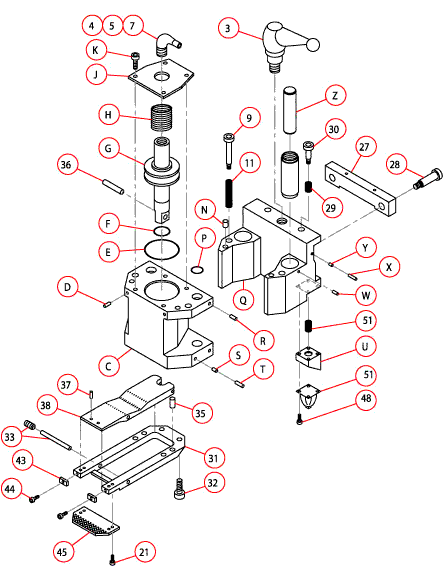

| Vipros Hydraulic Component Parts – MH1MCO |
|||
 |
|||
| DWG No. | Part No. | Description | Price |
| 00 | MH1MCO | Complete Assembly/Carbide | |
| 00 | MH1MCO-S | Complete Assembly/Screw | |
| 00 | MH1MJA | Clamp Assembly/Carbide (Incl. #31, 38, 43, 45) | |
| 00 | MH1MJA-S | Clamp Assembly/Screw (Incl. #31, 38, 43, 45) | |
| 03 | MH1MCP-18 | Clamp Lever (Steel 10mm) | |
| 04 | MH5MCP-38A | Elbow | |
| 05 | MH5MCP-38B | Hose, Hydraulic | |
| 07 | MH5MCP-38D | Coupler Assembly USA Style | N/A |
| 09 | MH6MCP-23 | Bolt AH 6×100 | |
| 11 | MH6MCP-54 | Clamp Base Spring | |
| 21 | MH7ARP-21 | Screw, FH Pkg of 10 | |
| 27 | MH5MCP-08 | Dove-Tail Clamp | |
| 28 | MH2MCP-28 | Bolt | |
| 29 | MH3MCP-04 | Dove-Tail Spring | |
| 30 | MH2MCP-30 | Bolt | |
| 31 | MH1MPA | Clamp Base (Incl. #33) | |
| 32 | MHSCS08x20 | Screw, AH Pkg of 10 | |
| 33 | MH1MCP-27 | Straight Pin & Set Screw | |
| 35 | MH2MCP-31 | Straight Pin | |
| 36 | MH5MCP-36 | Straight Pin | |
| 37 | MHSSS05x06 | Screw, SS Pkg of 10 | |
| 38 | MH1MUJ | Clamper/Carbide Inserts | |
| 38 | MH1MUJ-S | Clamper/ Set Screw (Incl. #37) | |
| 43 | MH2MCP-32 | Stopper Plate (Incl. #44) | |
| 44 | MHSFS04x10 | Screw, FH Pkg of 10 | |
| 45 | MH3MLJ | Clamp Plate (Incl.#21) | |
| 45 | MH3MLJ-C | Clamp Plate/Carbide | |
| 48 | MHSCS04x20 | Screw, SH Pkg of 10 | |
| 51 | MH4MCP-16 | Roller Cam Head | |
| 99 | MH4M-S10 | .010 Shims Pkg of 10 | |
| 99 | MH4M-S3 | .003 Shims Pkg of 10 | |
| 99 | MH4M-S5 | .005 Shims Pkg of 10 | |
| 99 | MH5A-ILJ | Carbide Insert/Lower Jaw (Knurl) | N/A |
| 99 | MH5A-IUJ | Carbide Insert/Upper Jaw (Chisel Edge) | N/A |
| 99 | MH5MUB | Urethane Boot | |
