Specials 3

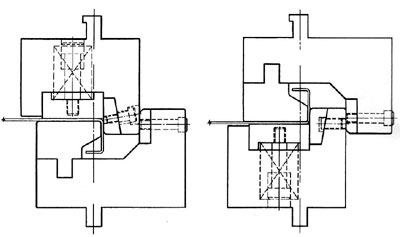

Wiping Dies

wiping dies
WD-01 WD-02
Wiping dies are used in high production flanging operations. Material whip up is eliminated. These die sets are usually rated for 16 gauge material or lighter.

Rotary Benders

rotary-bender
Rocker Diameter Material Range Min/Max Flange Length-OD
PCM-1 1” 22-14 GA
(.030 – .075)		 7/16″ – 2″
PCM-15 1-1/2” 13 – 11 GA
(.089 – .120)		 5/8″ – 2″
PCM-2 2” 10 – 8 GA
(.134 – .164)		 13/16″ – 2″
first-pressure midway close
First Pressure Midway Close
Clamps the material and starts rotation of the rocker. Humping is limited to the space between the edges of the rocker. The material does not skid. Rotary action precisely over-bends the material to allow for springback. Rocker does not scar or wipe the material.

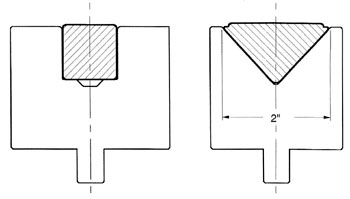

Urethane Holders & Pads

urethane
Urethane holders and pads are available for applications such as radius bends or mark free bending. Urethane Vee Pads are available in sizes to fit into standard 1/2″, 1″ and 2″ vee dies in lengths up to 48″.

Aircraft Dies

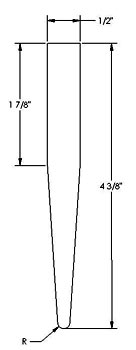

acp-100 acp-110
ACP-100 ACP-110
Tool # Radius
ACP-100 .031″
ACP-101 .062″
ACP-102 .093″
ACP-104 .156″
ACP-105 .187″
ACP-106 .218″
ACP-107 .250″
Tool # Radius
ACP-110 .031″
ACP-111 .062″
ACP-112 .093″
ACP-113 .125″
ACP-114 .156″;
ACP-115 .187″
ACP-116 .218″
ACP-117 .250″

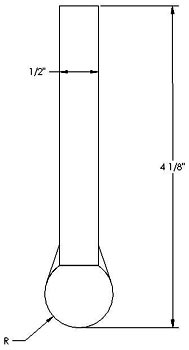

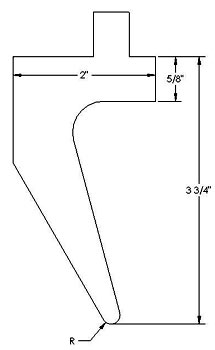

acp-120 acp-130
ACP-120 ACG-130
Tool # H Radius
ACP-120 4-1/8″ .375″
ACP-121 4-1/8″ .437″
ACP-122 4-1/8″ .500″
ACP-123 4-1/8″ .562″
ACP-124 4-1/8″ .625″
ACP-125 4-1/8″ .750″
ACP-126 4-1/8″ .875″
ACP-127 4-1/8″ 1.0″
Tool # Radius
ACG-130 .062″
ACG-131 .093″
ACG-132 .125″
ACG-133 .156″
ACG-134 .187″
ACG-135 .218″
ACG-136 .250″
ACG-137 .312″
ACG-138 .375″
ACG-139 .437″
ACG-140 .500″
ACG-141 .625″

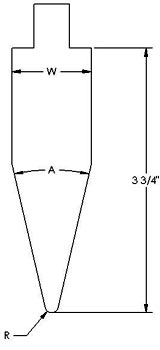

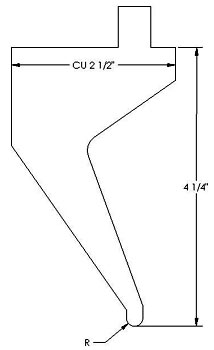

acp-120b acp-160
ACP-120 ACP-160
Tool W Radius A
ACP-140 1-1/8″ .031″ 25
ACP-141 1-1/8″ .062″ 24
ACP-142 1-1/8″ .094″ 23
ACP-143 1-1/8″ .125″ 21
ACP-144 1-1/8″ .156″ 20
ACP-145 1-1/8″ .187″ 18
ACP-146 1-1/8″ .218″ 16
ACP-147 1-1/8″ .250″ 14
ACP-148 1-1/8″ .312″ 11
ACP-149 1-1/8″ .375″ 6
ACP-150 1-1/4″ .437″ MIN
ACP-151 1-1/4″ .500″ MIN
ACP-152 1-1/2″ .562″ MIN
ACP-153 1-1/2″ .625″ MIN
ACP-154 2″ .750″ MIN
Tool # Radius
ACG-160 .062″
ACG-161 .093″
ACG-162 .125″
ACG-163 .156″
ACG-164 .187″
ACG-165 .218″
ACG-166 .250″
ACG-167 .375″
ACG-168 .500″

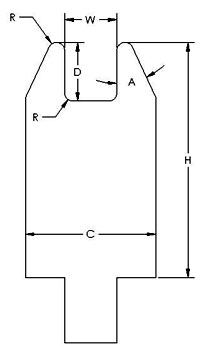

acd-200
ACD-200
Tool #   C   H   W   D   R
ACD-200 1″ 1-3/4″ .125″ .187″ .062″
ACD-201 1″ 1-3/4″ .187″ .250″ .062″
ACD-202 1″ 1-3/4″ .250″ .312″ .062″
ACD-203 1″ 1-3/4″ .312″ .375″ .062″
ACD-204 1-1/4″ 1-3/4″ .375″ .437″ .078″
ACD-205 1-1/4″ 1-3/4″ .437″ .500″ .093″
ACD-206 1-1/2″ 1-3/4″ .500″ .562″ .093″
ACD-207 2″ 2-1/4″ .625″ .750″ .125″
ACD-208 2″ 2-1/4″ .750″ .875″ .125″
ACD-209 2-1/2″ 2-1/4″ .875″ 1″ .156″
ACD-210 2-1/2″ 2-1/4″ 1″ 1.25″ .156″
ACD-211 3″ 2-1/4″ 1.12″ 1.25″ .156″
ACD-212 3″ 2-1/4″ 1.25″ 1.5″ .156″
ACD-213 3-1/2″ 2-3/4″ 1.50″ 1.50″ .187″
ACD-214 4″ 3-1/4″ 2″ 1.75″ .187″
