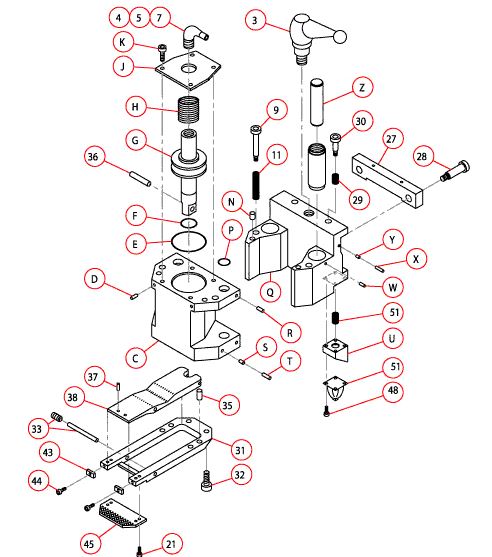

| Component Parts – MH1MCO-SHR |
 |
| DWG No. |
Part No. |
Description |
Price |
| 00 |
MH1MCO-SHR |
Complete Assembly/Shear |
|
| 00 |
MH1MJA-SHR |
Clamp Assembly/Carbide (Incl. #31,38,43,45) |
|
| 03 |
MH1MCP-18 |
Clamp Lever (Steel 10mm) |
|
| 04 |
MH5MCP-38A |
Elbow |
|
| 05 |
MH5MCP-38B |
Hose, Hydraulic |
|
| 07 |
MH5MCP-38D |
Coupler Assembly |
|
| 09 |
MH6MCP-23 |
Bolt AH 6×100 |
|
| 11 |
MH6MCP-54 |
Clamp Base Spring |
|
| 21 |
MH7ARP-21 |
Screw, FH Pkg of 10 |
|
| 27 |
MH5MCP-08 |
Dove-Tail Clamp |
|
| 28 |
MH2MCP-28 |
Bolt |
|
| 29 |
MH3MCP-04 |
Dove-Tail Spring |
|
| 30 |
MH2MCP-30 |
Bolt |
|
| 31 |
MH1MPA |
Clamp Base (Incl.#33) |
|
| 32 |
MHSCS08x20 |
Screw, AH Pkg of 10 |
|
| 33 |
MH1MCP-27 |
Straight Pin & Set Screw |
|
| 35 |
MH2MCP-31 |
Straight Pin |
|
| 36 |
MH5MCP-36 |
Straight Pin |
|
| 38 |
MH1MUJ-EG |
Clamper Extended Grip |
|
| 43 |
MH2MCP-32 |
Stopper Plate (Incl.#44) |
|
| 44 |
MH5FS04x10 |
Screw, FH Pkg of 10 |
|
| 45 |
MH3MLJ-SHR |
Lower Jaw/Shear/Sides |
|
| 45 |
MH3MLJ-SHRM |
Lower Jaw/Shear/Middle |
|
| 48 |
MHSC04x20 |
Screw, SH Pkg of 10 |
|
| 51 |
MH4MCP-16 |
Roller Cam/Head |
|
| 99 |
MH4M-S10 |
.010 Shims Pkg of 10 |
|
| 99 |
MH4M-S3 |
.003 Shims Pkg of 10 |
|
| 99 |
MH4M-S5 |
.005 Shims Pkg of 10 |
|
| 99 |
MH5A-ILJ |
Carbide Insert/Lower Jaw (Knurl) |
N/A |
| 99 |
MH5A-IUJ |
Carbide Insert/Upper Jaw (Chisel Edge) |
N/A |
