| Lila Thin Clamp Air Component Parts – MH4MCO |
|||
 |
|||

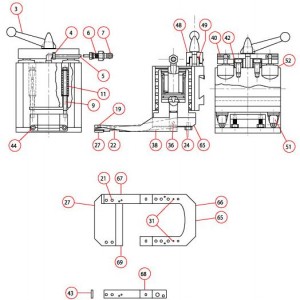

| DWG No. | Part No. | Description | Price |
| 00 | MH4MCO | Complete Assembly/Carbide | |
| 00 | MH4MCO-S | Complete Assembly/Screw | |
| 00 | MH4MJA | Clamp Assembly/Carbide (Incl. #27, 38, 65, 43) | |
| 00 | MH4MJA-S | Clamp Assembly/Screw (Incl. #27, 38, 65, 43) | |
| 03 | MH4MCP-18M | Clamp Lever (Steel 12mm) | |
| 04 | MH6MCP-38 | Hose Assembly | |
| 04 | MH6MCP-38A | Elbow | |
| 05 | MH6MCP-38B | Flexible Tubing | |
| 06 | MH6MCP-38C | Male Nipple | |
| 07 | MH6MCP-38D | Coupler Assembly | |
| 07 | MH6MCP-38E | Metric Coupler/Air NO LONGER AVAILABLE | |
| 09 | MH6MCP-23 | Bolt AH 6×100 | |
| 11 | MH6MCP-54 | Clamp Base Spring | |
| 19 | MHSSS05x05 | Screw, SS Pkg of 10 | |
| 21 | MH7ARP-21 | Screw, FH Pkg of 10 | |
| 22 | MH6MCP-27 | Straight Pin | |
| 24 | MH4MCP-34 | Under Plate | N/A |
| 27 | MH4MLJ | Clamp Plate (Incl.#21) | |
| 27 | MH4MLJ-C | Clamp Plate (Incl.#21) | |
| 31 | MH6MCP-31 | Straight Pin (Locator) | |
| 36 | MH6MCP-36 | Straight Pin | |
| 38 | MH4MUJ | Clamper/Carbide | |
| 38 | MH4MUJ-S | Clamper/Set Screw (Incl.#19) | |
| 40 | MH6MCP-03 | Support Pad | CALL |
| 42 | MH6MCP-04 | Pressure Point Spring | CALL |
| 43 | MH4MCP-32 | Stopper Plate (Incl.#44) | |
| 44 | MH5FS04x10 | Screw, FH Pkg of 10 | |
| 48 | MH6MCP-01 | Pressure Plate | N/A |
| 49 | MH6MCP-02 | Auxiliary Plate | N/A |
| 51 | MH4MCP-16 | Roller Cam/Head | |
| 52 | MH4MCP-08 | Locking Rod (32mm) | |
| 65 | MH4MPA | Clamp Base (Incl.#22,66,68,69) | |
| 66 | MH4MCP-46 | Body only for Clamp Base | |
| 67 | MH4MCP-47 | Leg, RH for Clamp Base | |
| 68 | MH4MCP-48 | Leg, LH for Clamp Base | |
| 69 | MH6MCP-49 | Connection Bar | |
| 99 | MH2MUB | Urethane Boot | |
| 99 | MH4M-S10 | .010 Shims Pkg of 10 | |
| 99 | MH4M-S3 | .003 Shims Pkg of 10 | |
| 99 | MH4M-S5 | .005 Shims Pkg of 10 | |
| 99 | MH5-ILJ | Carbide Insert/Lower Jaw (Knurl) | N/A |
| 99 | MH5-IUJ | Carbide Insert/Upper Jaw (Chisel Edge) | N/A |
