These punches are used to form a channel in two strokes, or in applications where a standard straight punch may cause interference. Available in both bottoming and air form designs. Nose angles or radii are easily modified to fit your requirements. Punches can be relieved to clear pre-formed extrusions, knockouts etc.

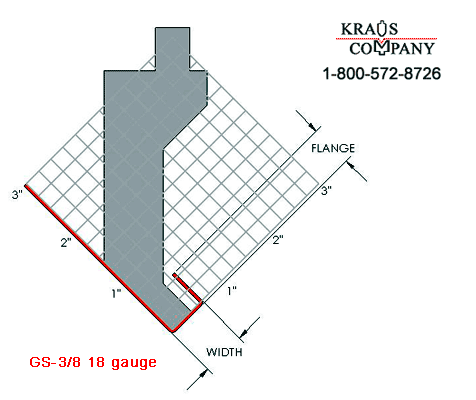

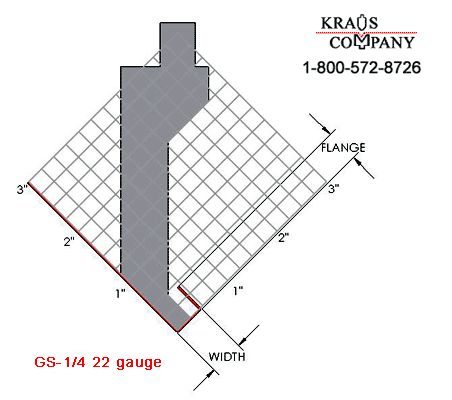

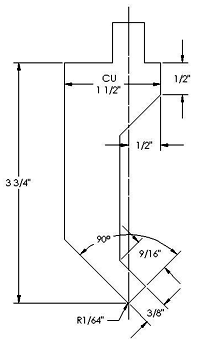

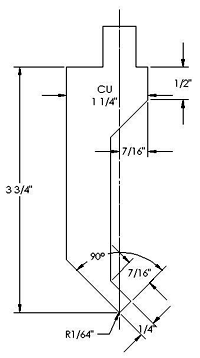

GS-1/4 22 gauge	GS-3/8 18 gauge
Dies

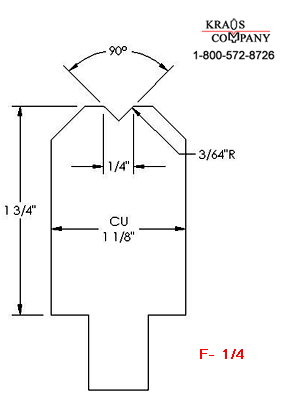

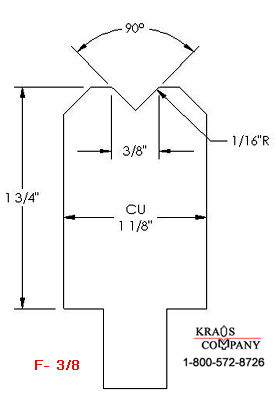

F-1/4	F-3/8

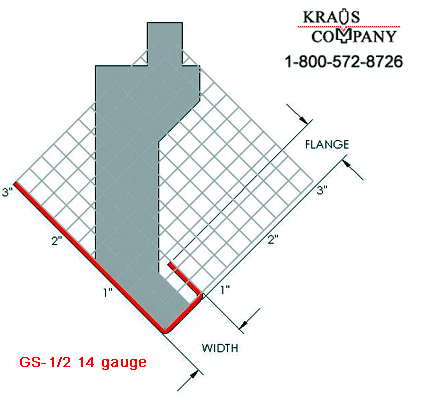

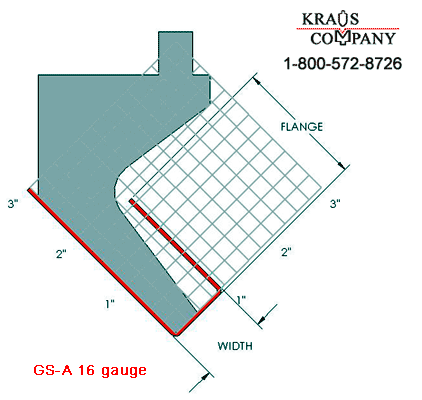

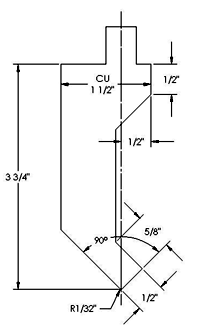

GS-A 16 gauge	GS-1/2 14 gauge
Dies

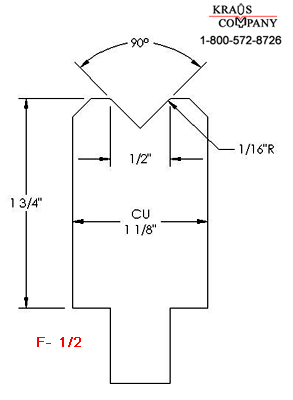

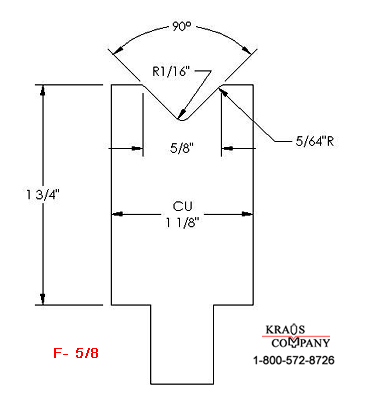

F-1/2	F-5/8

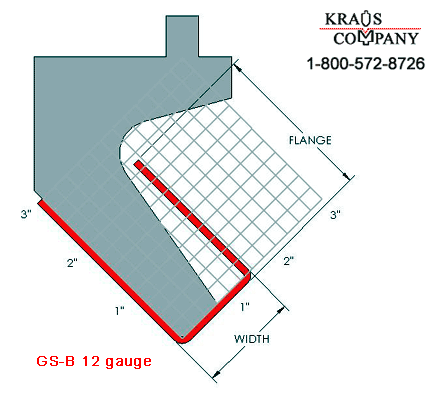

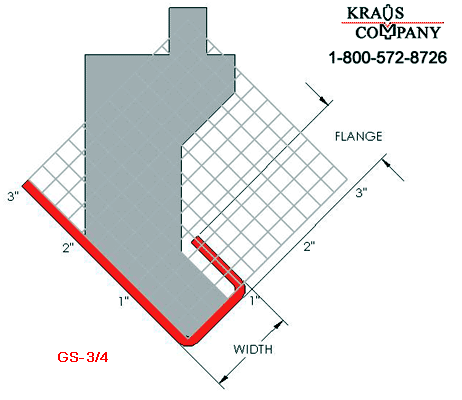

GS-B 12 gauge	GS-3/4 10 gauge
Dies

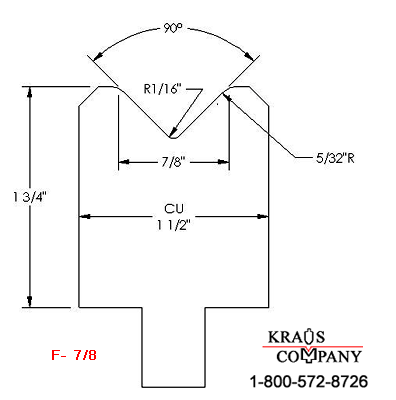

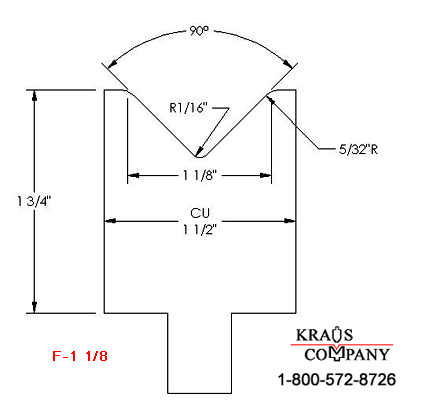

F-7/8	F-1 1/8

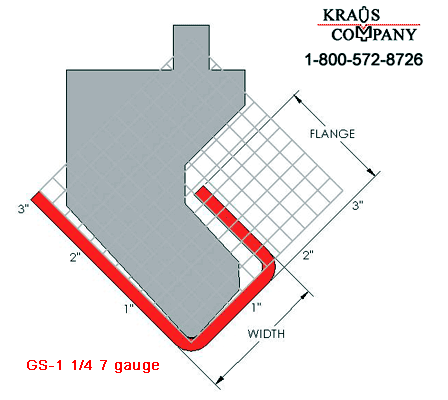

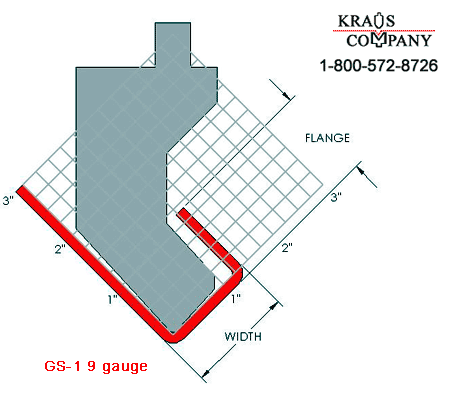

GS-1 9 gauge	GS-1 1/4 7 gauge
Dies

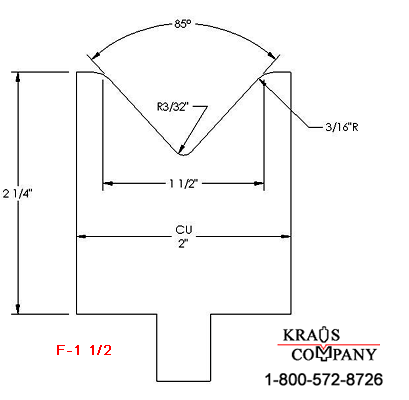

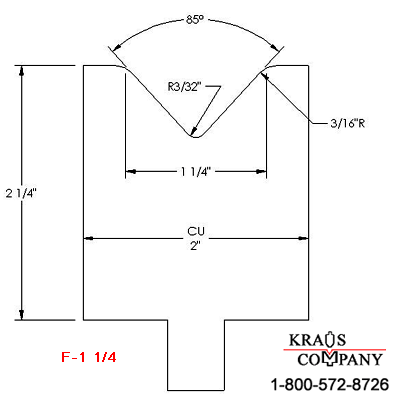

F-1 1/4	F-1 1/2

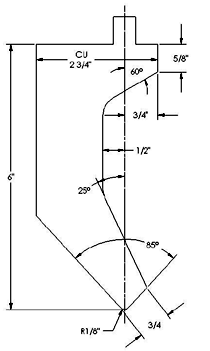

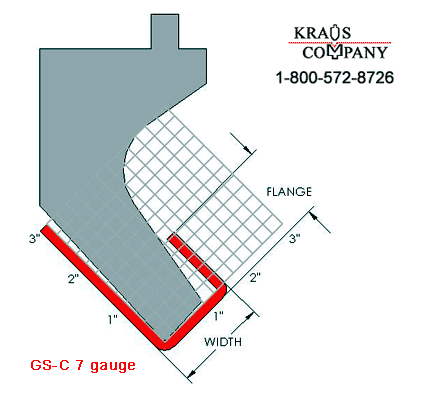

GS-C 7 gauge	GC-6 3/8”
Dies

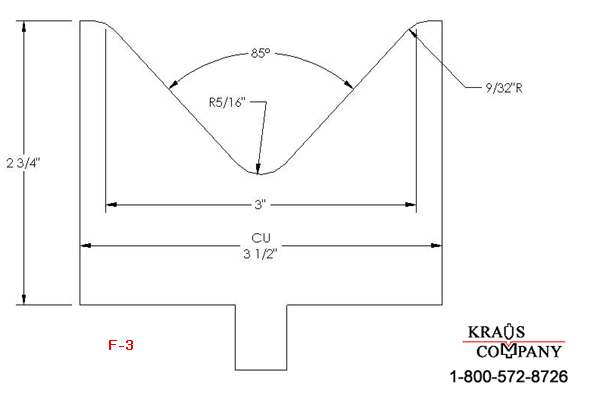

F-1 1/2	F-3

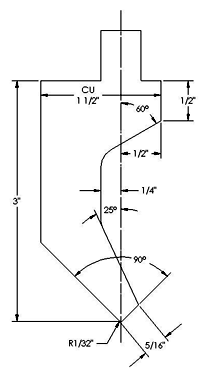

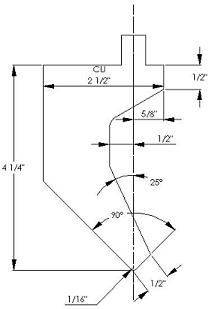

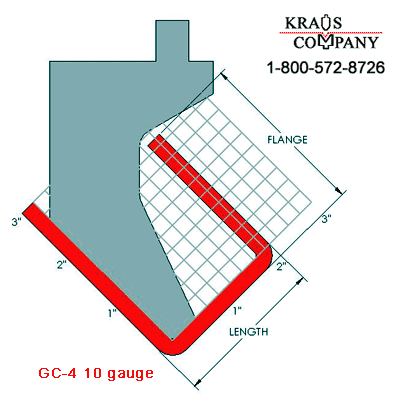

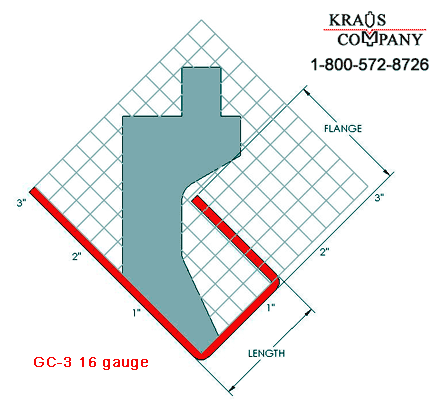

GC-3 16 gauge	GC-4 10 gauge
Dies
F-1/2	F-1 1/8
