Coma

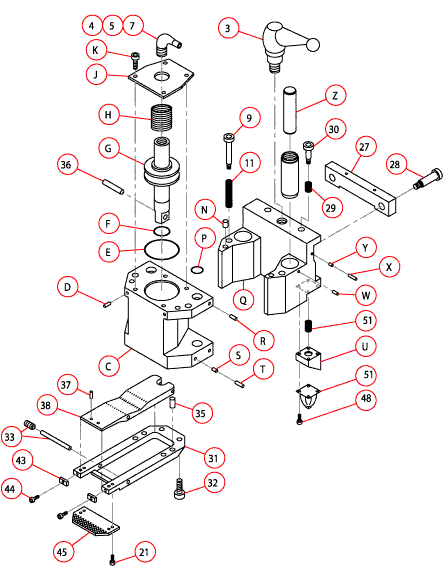

Coma Hydraulic NS
Component Parts – MH1MCO
hydraulic-ns
DWG No. Part No. Description Price
00 MH1MCO Complete Assembly/Carbide
00 MH1MCO-S Complete Assembly/Screw
00 MH1MJA Clamp Assembly/Carbide (Incl. #31, 38, 43, 45)
00 MH1MJA-S Clamp Assembly/Screw (Incl. #31, 38, 43, 45)
03 MH1MCP-18 Clamp Lever (Steel 10mm)
04 MH5MCP-38A Elbow
05 MH5MCP-38B Hose, Hydraulic
07 MH5MCP-38D Coupler Assembly USA Style N/A
09 MH6MCP-23 Bolt AH 6×100
11 MH6MCP-54 Clamp Base Spring
21 MH7ARP-21 Screw, FH Pkg of 10
27 MH5MCP-08 Dove-Tail Clamp
28 MH2MCP-28 Bolt
29 MH3MCP-04 Dove-Tail Spring
30 MH2MCP-30 Bolt
31 MH1MPA Clamp Base (Incl. #33)
32 MHSCS08x20 Screw, AH Pkg of 10
33 MH1MCP-27 Straight Pin & Set Screw
35 MH2MCP-31 Straight Pin
36 MH5MCP-36 Straight Pin
37 MHSSS05x06 Screw, SS Pkg of 10
38 MH1MUJ Clamper/Carbide Inserts
38 MH1MUJ-S Clamper/ Set Screw (Incl. #37)
43 MH2MCP-32 Stopper Plate (Incl. #44)
44 MHSFS04x10 Screw, FH Pkg of 10
45 MH3MLJ Clamp Plate (Incl.#21)
45 MH3MLJ-C Clamp Plate/Carbide
48 MHSCS04x20 Screw, SH Pkg of 10
51 MH4MCP-16 Roller Cam Head
99 MH4M-S10 .010 Shims Pkg of 10
99 MH4M-S3 .003 Shims Pkg of 10
99 MH4M-S5 .005 Shims Pkg of 10
99 MH5A-ILJ Carbide Insert/Lower Jaw (Knurl) N/A
99 MH5A-IUJ Carbide Insert/Upper Jaw (Chisel Edge) N/A
99 MH5MUB Urethane Boot
Coma Original Style Hydraulic
Component Parts – MH5MCO
original-style-hydraulic

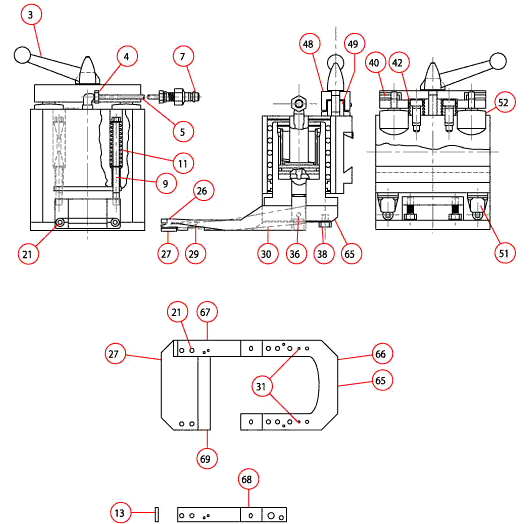

DWG No. Part No. Description Price
00 MH5MCO Complete Assembly/Carbide
00 MH5MCO-S Complete Assembly Screw
00 MH5MJA Clamp Assembly/Carbide (Incl.#13,27,30,65)
00 MH5MJA-S Clamp Assembly/Screw (Incl.#13,27,30,65)
03 MH4MCP-18M Clamp Lever (Steel 12mm)
04 MH5MCP-38A Elbow
05 MH5MCP-38B Hose, Hydraulic
07 MH5MCP-38D Coupler Assembly US Style N/A
09 MH6MCP-23 Bolt AH 6×100
11 MH6MCP-54 Clamp Base Spring
13 MH5MCP-32 Stopper Plate (Incl.#21)
21 MH7ARP-21 Screw, FH Pkg of 10
26 MHSSS05x06 Screw SS Pkg of 10
27 MH4MLJ Clamp Plate (Incl.#21)
27 MH4MLJ-C Clamp Plate/Carbide (Incl.#21)
29 MH5MCP-27 Straight Pin
30 MH5MUJ Clamper/Carbide
30 MH5MUJ-S Clamper/Set Screw (Incl.#26)
31 MH6MCP-31 Straight Pin (Locator)
36 MH5MCP-36 Straight Pin
38 MH5MCP-34 Under Plate CALL
40 MH6MCP-03 Support Pad CALL
42 MH6MCP-04 Pressure Point Spring CALL
48 MH6MCP-01 Pressure Plate CALL
49 MH6MCP-02 Auxiliary Plate CALL
51 MH4MCP-16 Roller Cam/Head
52 MH4MCP-08 Locking Rod
65 MH5MPA Clamp Base/Assy Unit (Incl.#29,66,67,68,69)
65 MH5MPH Clamp Base/Heavy/One Piece
66 MH5MCP-46 Body Only for MH5MPA Clamp Base
67 MH5MCP-47 Leg, RH for Clamp Base
68 MH5MCP-48 Leg, LH for Clamp Base
69 MH6MCP-49 Connection Bar
99 MH5M-S10 .010 shims Pkg of 10
99 MH5M-S3 .003 Shims Pkg of 10
99 MH5M-S5 .005 shims Pkg of 10
99 MH5MUB Urethane Boot
99 MH5A-ILJ Carbide Insert/Lower Jaw (Knurl) N/A
99 MH5A-IUJ Carbide Insert/Upper Jaw (Chisel Edge) N/A
Coma Thick Clamp Air
Component Parts – MH6MCO
thick-clamp-air

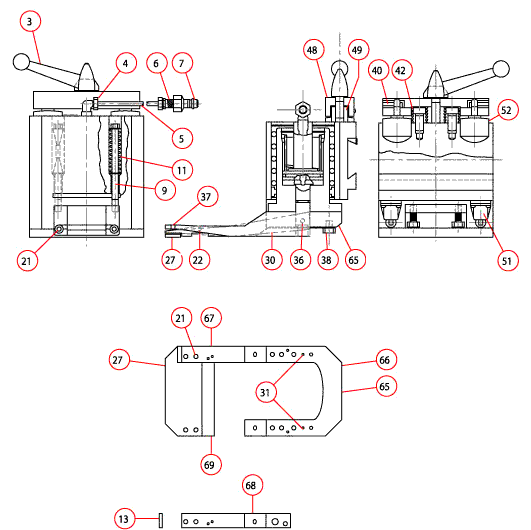

DWG No. Part No. Description Price
00 MH6MCO Complete Assembly/Carbide
00 MH6MCO-S Complete Assembly/Set Screw
00 MH6MJA Clamp Assembly/Carbide (Incl.#13,27,30,65)
00 MH6MJA-S Clamp Assembly/Set Screw (Incl.#13,27,30,65)
03 MH4MCP-18M Clamp Lever (Steel 12mm)
04 MH6MCP-38 Hose Assembly
04 MH6MCP-38A Elbow
05 MH6MCP-38B Flexible Tubing
06 MH6MCP-38C Male Nipple
07 MH6MCP-38D Coupler Assembly
07 MH6MCP-38E Metric Coupler/Air CALL
09 MH6MCP-23 Bolt AH 6×100
11 MH6MCP-54 Clamp Base Spring
13 MH5MCP-32 Stopper Plate
21 MH7ARP-21 Screw, FH Pkg of 10
22 MH6MCP-27 Straight Pin
27 MH4MLJ Clamp Plate
27 MH4MLJ-C Clamp Plate/Carbide (Incl.#21)
30 MH6MUJ Clamper/Carbide
30 MH6MUJ-S Clamper/Screw
30 MH6MUJ-3/8 Clamper/Carbide 1/8-3/8
31 MH6MCP-31 Straight Pin (Locator)
36 MH6MCP-36 Straight Pin
37 MHSSS05x08 Screw, SS Pkg of 10
38 MH6MCP-34 Under Plate CALL
40 MH6MCP-03 Support Pad CALL
42 MH6MCP-04 Pressure Point Spring CALL
48 MH6MCP-01 Pressure Plate CALL
49 MH6MCP-02 Auxiliary Plate CALL
51 MH4MCP-16 Roller Cam/Head
52 MH6MCP-08 Locking Bar (30mm)
65 MH6MPA Clamp Base (Incl.#22,66,67,68,69)
65 MH6MPH Clamp Base/Heavy/One Piece
66 MH5MCP-46 Body Only for Clamp Base
67 MH5MCP-47 Leg, RH for Clamp Base
68 MH5MCP-48 Leg, LH for Clamp Base
69 MH6MCP-49 Connection Bar
99 MH5M-S10 .010 Shims Pkg of 10
99 MH5M-S3 .003 Shims Pkg of 10
99 MH5M-S5 .005 Shims Pkg of 10
99 MH5MUB Urethane Boots
99 MH5A-ILJ Carbide Insert/Lower Jaw (Knurl) N/A
99 MH5A-IUJ Carbide Insert/Upper Jaw (Chisel Edge) N/A
Coma Thick Clamp Hydraulic
Component Parts – MH8MCO
thick-clamp-hydraulic

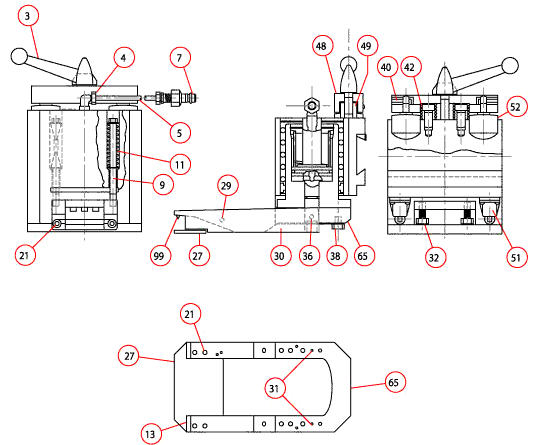

DWG No. Part No. Description Price
00 MH8MCO Complete Assembly/Carbide/Heavy 0-1/2
00 MH8MJA Clamp Assembly/Carbide/Heavy(Incl.#13,27,30,65)
03 MH8MCP-18M Clamp Lever (Steel 14mm)
03 MHHHS14x30 Hex Head Screw-only
04 MH5MCP-38A Elbow
05 MH5MCP-38B Hose,Hydraulic
07 MH5MCP-38D Coupler Assembly USA Style N/A
09 MH6MCP-23 Bolt AH 6×100
11 MH6MCP-54 Clamp Base Spring
13 MH8MCP-32 Stopper Plate/Heavy (Incl.#21)
21 MHSFS06x16 Screw, FH Pkg of 10
27 MH8MLJ Clamp Plate/Heavy (Incl.#21)
29 MH8MCP-27 Straight Pin
30 MH8MUJ Clamper 1/4-1/2
31 MH6MCP-31 Straight Pin (Locator)
36 MH8MCP-36 Straight Pin
38 MH5MCP-34 Under Plate CALL
40 MH6MCP-03 Support Pad CALL
42 MH6MCP-04 Pressure Point Spring CALL
48 MH8MCP-01 Pressure Plate CALL
00 MH8MCP-02 Auxiliary Plate CALL
49 MH8MCP-16 Roller Cam/Head
52 MH4MCP-08 Locking Rod
65 MH8MPA Clamp Base 1/4-1/2 (Incl.#29)
99 MH5A-ILJ Carbide Insert/Lower Jaw (Knurl) N/A
99 MH5A-IUJ Carbide Inser/Upper Jaw (Chisel Edge) N/A
Coma Thin Clamp Air
Component Parts – MH4MCO
thin-clamp-air

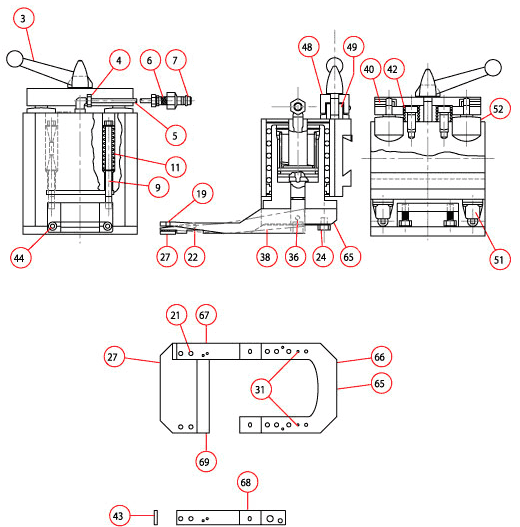

DWG No. Part No. Description Price
00 MH4MCO Complete Assembly/Carbide
00 MH4MCO-S Complete Assembly/Screw
00 MH4MJA Clamp Assembly/Carbide (Incl. #27, 38, 65, 43)
00 MH4MJA-S Clamp Assembly/Set Screw (Incl.#13,27,30,65)
03 MH4MCP-18M Clamp Lever (Steel 12mm)
04 MH6MCP-38 Hose Assembly
04 MH6MCP-38A Elbow
05 MH6MCP-38B Flexible Tubing
06 MH6MCP-38C Male Nipple
07 MH6MCP-38D Coupler Assembly
07 MH6MCP-38E Metric Coupler/Air CALL
09 MH6MCP-23 Bolt AH 6×100
11 MH6MCP-54 Clamp Base Spring
19 MHSSS05X05 Screw, SS Pkg of 10
21 MH7ARP-21 Screw, FH Pkg of 10
22 MH6MCP-27 Straight Pin
24 MH4MCP-34 Under Plate CALL
27 MH4MLJ Clamp Plate (Incl. #21)
27 MH4MLJ-C Clamp Plate (Incl. #21)
31 MH6MCP-31 Straight Pin (locator)
36 MH6MCP-36 Straight Pin
38 MH4MUJ Clamper/Carbide
38 MH4MUJ-S Clamper/Set Screw (Incl. #19)
40 MH6MCP-03 Support Pad CALL
42 MH6MCP-04 Pressure Point Spring CALL
43 MH4MCP-32 Stopper Plate (Incl. #44)
44 MHSFS04X10 Screw, FH Pkg of 10
48 MH6MCP-01 Pressure Plate CALL
49 MH6MCP-02 Auxiliary Plate CALL
51 MH4MCP-16 Roller Cam/Head
52 MH4MCP-08 Locking Rod (32mm)
65 MH4MPA Clamp Base (Incl. #22, 66, 67,, 68, 69)
66 MH4MCP-46 Body only for Clamp Base
67 MH4MCP-47 Leg, RH for Clamp Base
68 MH4MCP-48 Leg, LH for Clamp Base
69 MH6MCP-49 Connection Bar
99 MH2MUB Urethane Boot
99 MH4M-S10 .010 Shims Pkg of 10
99 MH4M-S3 .003 Shims Pkg of 10
99 MH4M-S5 .005 Shims Pkg of 10
99 MH5A-ILJ Carbide Insert/Lower Jaw (Knurl) N/A
99 MH5A-IUJ Carbide Insert/Upper Jaw (Chisel Edge) N/A
