Multi-Vee Block Dies

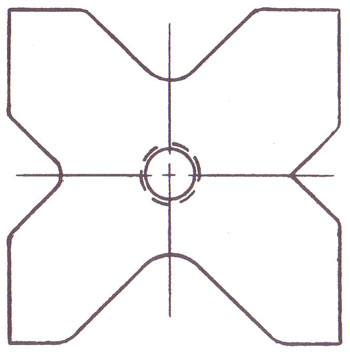

multi-vee
Die Number Block Size Die Openings
2-2MV4 2.250 0.500 0.750 1.000 1.250
2-7MV4 2.750 0.625 0.875 1.125 1.500
3-2MV4 3.250 0.750 1.000 1.500 2.000
3-7MV4 3.750 0.875 1.125 2.000 2.500
4-2MV4 4.250 1.000 1.500 2.000 3.000
4-7MV4 4.750 1.000 1.250 2.500 3.000
5-2MV4 5.250 1.000 2.000 3.000 4.000
5-7MV4 5.750 1.250 2.000 3.000 4.000
6-7MV4 6.750 1.500 2.500 3.500 5.000
7-7MV4 7.750 2.000 3.000 3.500 6.000
10MV4 10.000 2.500 3.500 4.000 8.000
12MV4 12.000 3.000 4.000 5.000 10.000
Box Forming Tools

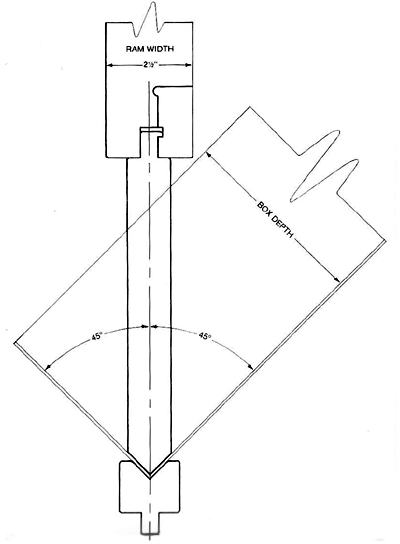

box-forming-tools
Box Depth Min Punch Height
1″ 2-3/4″
1-1/2″ 3-15/32″
2″ 4-3/16″
2-1/2″ 4-29/32″
3″ 5-19/32″
3-1/2″ 6-5/16″
4″ 7″
4-1/2″ 7-23/32″
5″ 8-13/32″
5-1/2″ 9-1/8″
6″ 9-27/32″
6-1/2″ 10-17/32″
7″ 11-1/4″
7-1/2″ 11-31/32″
8″ 12-21/32″
8-1/2″ 13-3/8″
9″ 14-1/6″
9-1/2″ 14-25/32″
10″ 15-1/2″



Rib Forming Tools
rb14

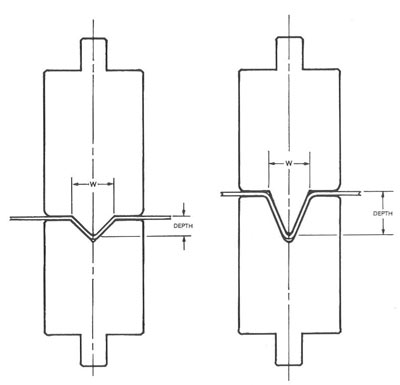

RB-14
rb10-12

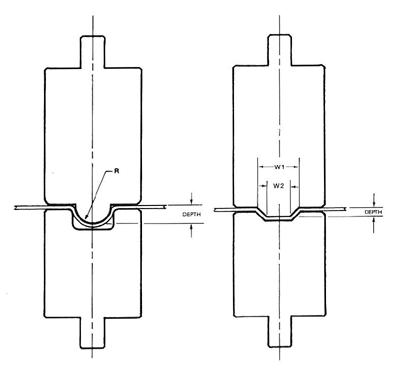

RB-10 RB-12



Radius Dies
rs18-20-21

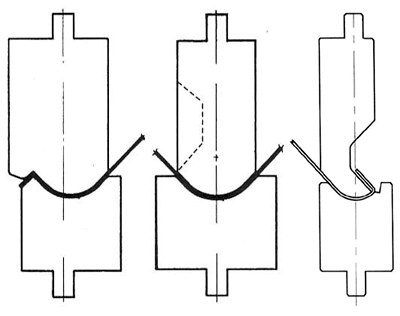

RS-18 RS-20 RS-21



30/60 Type Die Sets
rs24-21

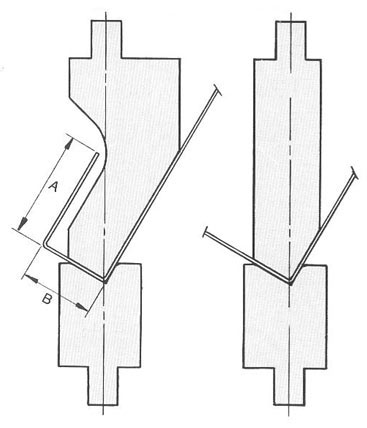

RS-24 RS-21
30-60 and “tipped angle” die sets strengthen the punch when forming deep return flanges.



Special Offset Dies
jgl-1

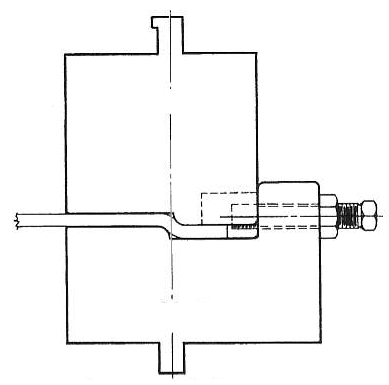

JGL-1
so28-30

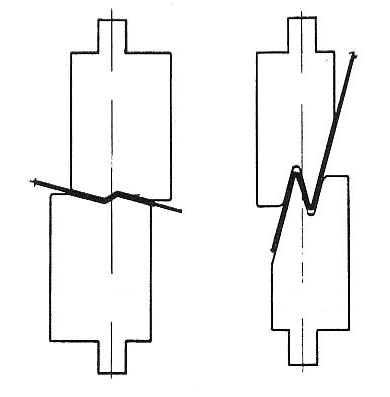

SO-28 SO-30
rb-style
RB Style
