Octo

Octo Air

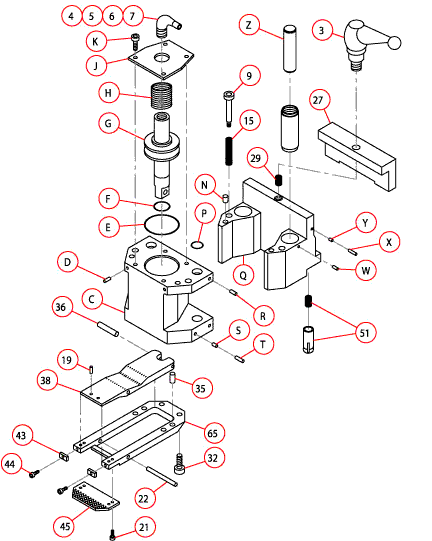

Component Parts – MH7MCO
octo
DWG No. Part No. Description Price
00 MH7MCO Complete Assembly/Carbide
00 MH7MCO-S Complete Assembly/Screw
00 MH7MJA Clamp Assembly/Carbide (Incl. #38 ,43 ,45 , 65)
00 MH7MJA-S Clamp Assembly/Screw (Incl. #38, 43, 45, 65)
00 MH7MJA-3/8 Clamp Assembly 1/8-3/8 (Incl. 38,43,45,65)
03 MH1MCP-18 Clamp Lever (Steel 10mm)
04 MH6MCP-38A Elbow
05 MH6MCP-38B Flexible Tubing
06 MH6MCP-38C Male Nipple
07 MH6MCP-38D Coupler Assembly
07 MH6MCP-38E Metric Coupler/Air NO LONGER AVAILABLE
09 MH7MCP-23 Bolt AH 6×90
15 MH7MCP-54 Clamp Base Spring
19 MHSSS05x05 Screw, SS Pkg of 10
21 MH7ARP-21 Screw, FH Pkg of 10
22 MH6MCP-27 Straight Pin
27 MH7MCP-08 Dove-Tail Clamp
29 MH7MCP-04 Dove-Tail Spring
35 MH2MCP-31S Pin Stepped (8mm to 10mm)
35 MH7MCP-31 Locator Pin
36 MH3MCP-36 Straight Pin/Sect Screw
38 MH7MUJ Clamper/Carbide (Incl.#36)
38 MH7MUJ-S Clamper/Screw (Incl.#19,36)
43 MH2MCP-32 Stopper Plate (Incl.#44)
44 MHSFS04x10 Screw, FH Pkg of 10
45 MH3MLJ Clamp Plate (Incl.#21)
45 MH3MLJ-C Clamp Plate/Carbide (Incl.#21)
51 MH7MCP-16 Roller Cam/Head
65 MH7MPA Clamp Base (Incl.#22)
65 MH7MPA-3/8 Clamp Base 1/8-3/8″ (Incl.#22)
99 MH2MUB Urethane Boot
99 MH4M-S10 .010 Shims Pkg of 10
99 MH4M-S3 .003 Shims Pkg of 10
99 MH4M-S5 .005 Shims Pkg of 10
99 MH5A-ILJ Carbide Insert/Lower Jaw (Knurl) N/A
99 MH5A-IUJ Carbide Insert/Upper Jaw (Chisel Edge) N/A
